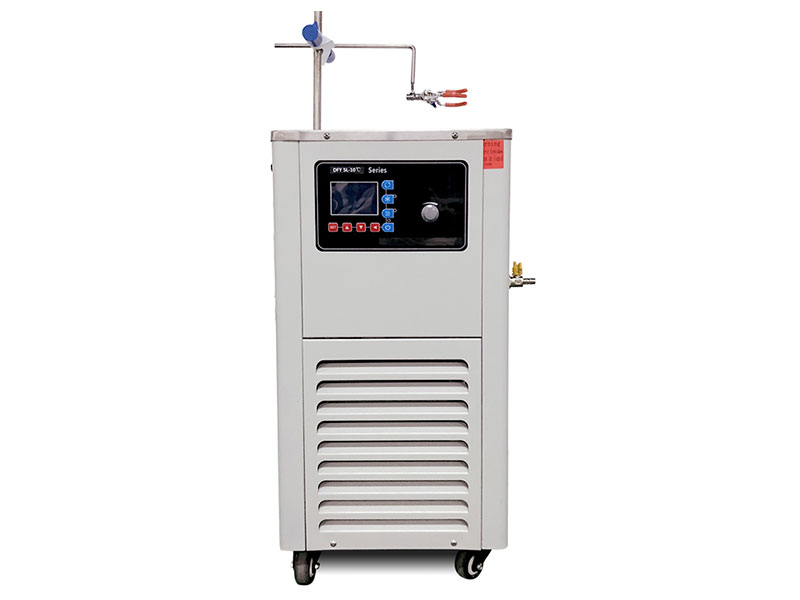

Application fields and characteristics of low temperature reaction bath
The low temperature constant temperature reaction bath is also called "low temperature bath", "low temperature reflection bath", "low temperature tank", "low temperature constant temperature reaction tank", etc. The low temperature constant temperature reaction bath is suitable for scientific research, biology, physics, medicine, chemical industry, etc. The department conducts low temperature tests, which can replace dry ice, liquid nitrogen for low temperature reaction, or provide low temperature conditions for related test equipment.
The cryogenic constant temperature reaction bath is a high-precision constant temperature source with its own refrigeration and heating, and has the function of a small chiller. Widely used in petroleum, chemical, metallurgy, pharmaceutical, biochemical, physical properties, testing and chemical analysis and other research departments, institutions of higher learning, factory laboratories and metrological quality inspection departments.
The cryogenic thermostatic reaction bath can also be used in short-path distillation systems to provide a source of cold and heat to the entire system in a short-path distillation unit. It can not only do the low temperature reaction of the condenser, but also provide a constant temperature and normal temperature environment for the whole system. Help the short-path distillation system to complete the experimental reaction.
The entire short-distillation system also contains a low-temperature constant temperature reaction bath, short-path distillation as a high-precision equipment for extracting CBD oil. It has the characteristics of small volume, high recovery rate, fast heating speed and high evaporation.
With the increasing use of cryogenic thermostatic reaction baths, a correct understanding of the working mechanism of drying and drying equipment helps to successfully complete the drying process, but we still need to continuously invest human and material resources to further study the drying technology. And development, so that it can effectively improve work efficiency while producing high quality products.
Depending on the size of the slot opening, a constant temperature test can be performed in the bath, or it can be connected to other equipment through a hose and used with a constant temperature source. The inner circulation increases the uniformity of the temperature inside the tank and reduces temperature fluctuations. External circulation: Through the circulation capacity of the pump, the insulated hose is connected with the external equipment by the water outlet to form a closed loop, which flows back to the water inlet of the equipment, and externally introduces the constant temperature medium in the tank to establish an external constant temperature field.
Low temperature constant temperature reaction bath features:
1. Fully enclosed compressor unit refrigeration, refrigeration system with multiple protection devices for overheating and overcurrent
2. The circulation pump can externally introduce the constant temperature liquid in the tank to establish a second constant temperature field.
3. The cold liquid in the tank can be externally led, and the experimental container outside the cooling machine can also be directly subjected to low temperature and constant temperature experiment in the tank.
4, using XMT analog digital PID automatic control system, temperature digital display
5, the inner liner and the countertop are all stainless steel, clean and hygienic, beautiful and corrosion resistant
6, DCW series is horizontal, easy to put in the console
Specifications of low temperature constant temperature reaction bath
| Low temperature constant temperature reaction bath technology parameter | ||
| Specification model | Liquid storage volume（L） | Empty wearing minimum temperature(℃) |
| DFY-2/40 | 2 | -40 |
| DFY-2/80 | 2 | -80 |
| DFY-2/100 | 2 | -100 |
| DFY-2/120 | 2 | -120 |
| DFY-5/10 | 5 | -10 |
| DFY-5/20 | 5 | -20 |
| DFY-5/25 | 5 | -25 |
| DFY-5/30 | 5 | -30 |
| DFY-5/40 | 5 | -40 |
| DFY-5/80 | 5 | -80 |
| DFY-5/120 | 5 | -120 |
| DFY-10/10 | 10 | -10 |
| DFY-10/20 | 10 | -20 |
| DFY-10/30 | 10 | -30 |
| DFY-10/40 | 10 | -40 |
| DFY-10/60 | 10 | -80 |
| DFY-10/80 | 10 | -80 |
| DFY-10/120 | 10 | -120 |
| DFY-20/0 | 20 | 0 |
| DFY-20/25 | 20 | -25 |
| DFY-20/40 | 20 | -40 |
| DFY-20/60 | 20 | -60 |
| DFY-20/120 | 20 | -120 |
| DFY-30/20 | 30 | -20 |
| DFY-30/120 | 30 | -120 |
| DFY-40/40 | 40 | -40 |
| DFY-50/10 | 50 | -10 |
| DFY-50/20 | 50 | -20 |
| DFY-50/80 | 50 | -80 |
| DFY-100/40 | 100 | -40 |
