SPD series short-path distillation features and product advantages.

The short distillation equipment has the advantages of simple structure, small occupied area, high evaporation efficiency and high recovery efficiency, and is mainly used in the fractionation process.

Note on using short-path distillation:

1. No load is not suitable for high speed operation;

2. Keep the speed regulation and the motor dry, because the life of the electrical box has a great influence on the surrounding humidity and temperature;

3. The ground wire must be well grounded, and the high temperature bath must be connected to the open switch;

4. There may still be electric shock within 5 minutes after the power is turned off, due to the discharge of the inverter or capacitor;

5. Please avoid damage to the glass caused by hard objects such as watches and rings when operating the instrument;

6. When the glass reactor needs heating, it should be gradually heated. Especially when heating at high temperature, it is generally recommended to use heat-conducting oil with little damage to the human body.

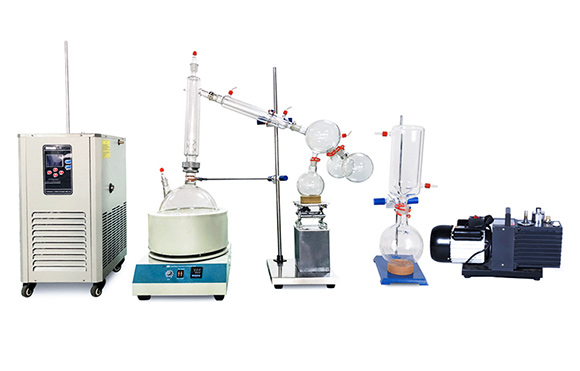

SPD-2L Short Path Distillation


SPD-2L short-path distillation

1. Heating capacity: 2000ml

2. Vacuum degree: 0.098Mpa

3. Material: G3.3

SPD-2L short-path distillation reaction bottle volume 2L, heating temperature room temperature -250°, heating accuracy ± SD-2L is the smallest capacity in the existing short-path distillation series. It is a new product designed and developed by the company to meet the market demand. It adopts high borosilicate glass, which is anti-corrosion and durable. The glass parts are connected by sanding ports, which have better sealing and unique design. Separate cold traps and collection bottles make disassembly easier. This small short-path distillation is more suitable for small experiments. If you are only doing small experiments, you may wish to try this model.



SPD-10L Short-path distillation


SPD-10L short-path distillation reaction bottle volume 10L, heating temperature room temperature -250°; heating accuracy ± SD-10L is the larger of the existing short-path distillation series. It is a new product designed and developed by the company to meet the market demand. It adopts high borosilicate glass, which is anti-corrosion and durable. The glass parts are connected by sanding ports, which have better sealing and unique design. Separate cold traps and collection bottles make disassembly easier.

Product advantages

1. The product is made of high quality borosilicate material.

2. The glass parts are connected by a matte port, which is easy to operate and has good sealing performance.

3. The structural size can be customized according to the special needs of customers.
