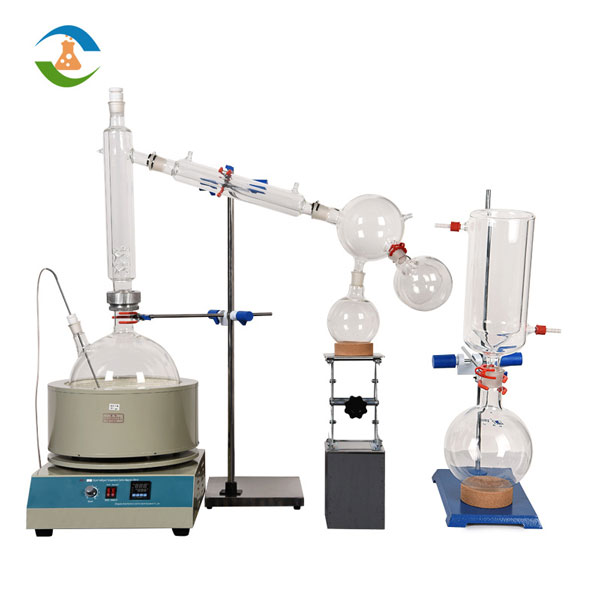

10L Short Path Distillation Kit
The10l short path distillation kit can achieve a vacuum of 0.098 MPa, which can raise the temperature of the reaction bottle and help the material that needs a higher temperature to react.
Working principle:
10l short path distillation kit is a kind of equipment for distillation method operated under high vacuum. Its working principle is: the driving force of steam flow is the pressure difference between the boiling film and the condensation surface, and a small pressure drop will cause the flow of steam. Operating at a pressure of 1 mbar and requiring a very short distance between the boiling surface and the condensing surface, a distiller based on this principle is called a short-path distillation. The 10l short path distillation kit has a built-in condenser opposite the heating surface which reduces the operating pressure to 0.001 mbar.
Features
1. High-precision transmission and mechanical seal design to ensure long-term smooth operation of equipment
2. The evaporation cylinder is integrally formed without intermediate flange connection.
3. The surface of the cylinder has a high surface finish and is not easy to stick.
4. Unique liquid distributor and splash-proof device design to ensure product quality
Scope of application:
1. Fine chemical industry: such as aromatic oil purification, polymer intermediate purification, lanolin extraction, etc.;
2. Pharmaceutical field: such as extracting natural vitamin AE to synthesize amino acids and glucose derivatives;
3. Food industry: such as refining fish oil, deacidification, refining higher alcohol, separation of mixed oil;
4. Other fields: petroleum industry, chemical industry, environmental protection.
Detail
The following equipment is used in conjunction with a short path distillation to increase the efficiency of the short path distillation.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
- Low temperature coolant circulation pump
- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | Parts name | Parts number |
| 10L short path distillation |

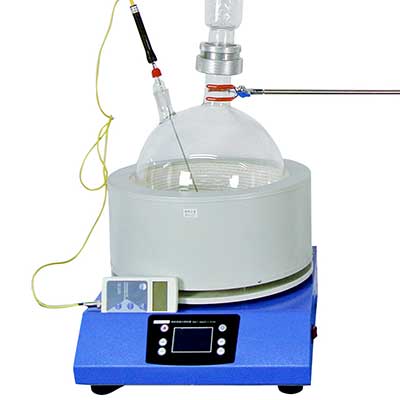

10000 ml Digital Heating Mantle |
1 |
|
10000 ml 2 Neck Boiling Flask |
1 | |

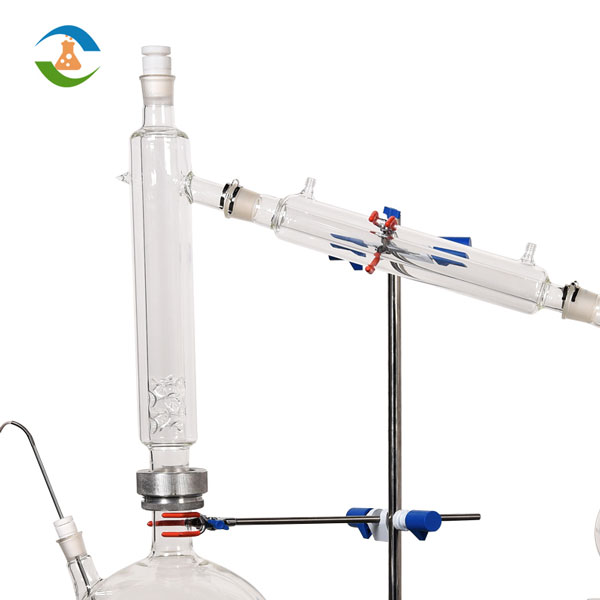

| Short Path Distillation Head | 1 | |

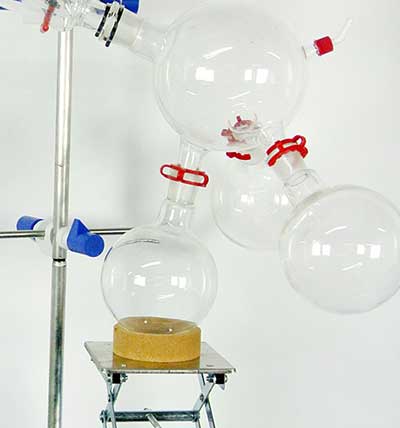

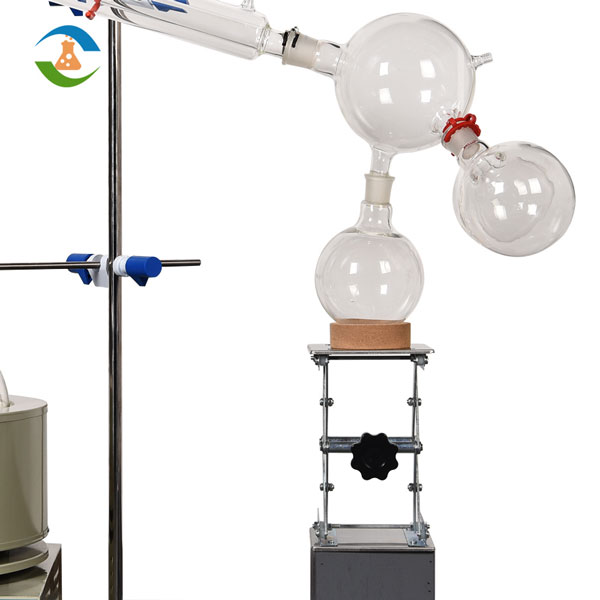

| Cow Receiver | 1 | |
|
2000 ml Round Bottom Flasks |
3 | |

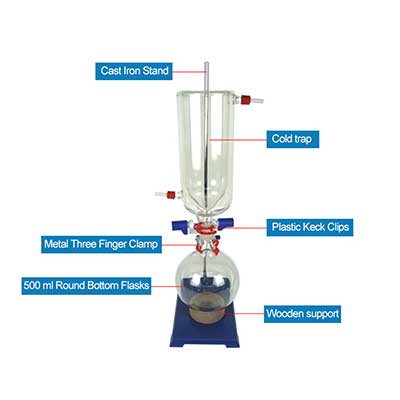

| Plastic Keck Clips | 7 | |
| Cast Iron Stand | 1 | |
| Metal Three Finger Clamp | 1 |
