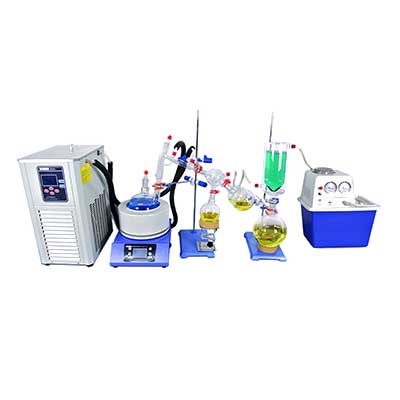

500ml short path distillation kit canada uk

ZZKD is a well-known manufacturer of lab instrument manufacturer,we provide customers with complete distillation and extraction solutions,Short path distillation is one of our main products and include:2L short path distillation, 5L short path distillation, 10L short path distillation, 20L short path distillation,etc.

Vacuum distillation is one of the common methods for separating and purifying organic compounds. The vacuum distillation device is especially suitable for those substances that have been thermally decomposed, oxidized or polymerized before reaching the boiling point during atmospheric distillation.Short path distillation is a simple vacuum distillation device.

Vacuum distillation instructions:
The boiling point of a liquid refers to the temperature when its saturated vapor pressure is equal to the external pressure. Simply put, it is the temperature at which the liquid boils under a standard atmospheric pressure. Therefore, the boiling point of a liquid is not fixed and will change with changes in external pressure. Vacuuming to reduce the pressure in the system can lower the boiling point of the liquid, which is the theoretical basis for the vacuum distillation operation.
Vacuum distillation device: It is mainly composed of four parts: distillation main body, gas extraction, safety protection and pressure measurement.

Kjeldahl distillation head: can reduce the possibility of splashing into the condenser tube due to liquid bumping;

Capillary tube: As the gasification center, it makes the distillation stable and avoids the phenomenon of bumping caused by overheating of the liquid.The capillary mouth is about 1 to 2mm away from the bottom of the bottle. In order to control the air intake of the capillary, a soft rubber tube can be put on the capillary glass tube, and a thin iron wire can be inserted into the rubber tube and clamped with a screw clamp.

Collector: Usually, two or three round flasks are connected with a multi-tailed liquid connection tube. When receiving different components, only need to rotate the liquid connection tube. Do not use non-pressure-resistant flat-bottomed bottles (such as conical flasks, etc.) to prevent inward explosion.

Pumping part: Commonly used pressure reducing pumps include water pump and oil pump.

Safety protection part: Generally, there is a safety bottle. If an oil pump is used, a cold trap and a drying tower are also necessary to prevent low boiling point solvents from entering the oil pump and reducing the vacuum efficiency of the pump, especially acid and water vapor, so it must be done before the oil pump vacuum distillation Distill out all low-boiling liquids, water, acids and alkaline gases under normal pressure or under reduced pressure of a water pump.

Pressure measurement part: pressure gauge is used, but with the development of technology, electronic pressure measurement components are now used.

---
