ZNCL and ZKCL heating mantle | Laboratory distillation equipment manufacturer

The working theory of this product is using micro electrical machinery to drive the heatproof magnet to spin, thus creating a magnetic field. This magnetic field will drive the stir bar to spin in the container and later it will cause spin of the solvent. Meanwhile, it can heat the solvent so that it can be fully mixed at set temperature. This product has been widely applied in biology, medicine, chemistry, chemical engineering and other related fields.



Hand woven mineral wool with flexible braiding, which adapts snugly around the flask, with drain hole, replaceable. The heating element is distributed homogeneously throughout the mantle. Connectors and cables are pretected by mineral fibre tube.Maximum mantle temerature of 350℃.Double walled fibre thermally insulated casing. Pure Nickel connection terminals protected by mineral fibre tubing that prevent the deterioration of the contact due to high temperature.



Magnetic stirrer and heating mantle is laboratory equipment that heat containers to replace other heating baths. Compared to other heating devices, the glassware vessel can be in direct contact with the heating jacket without substantially increasing the risk of breakage of the glass vessel due to heating elements and the vessel of the heating jacket.



Insulate to prevent excessive temperature gradients. In a typical arrangement, the wire is embedded within a fabric band that can be wrapped around the flask. The current provided to the device and the temperature reached are regulated by a rheostat. This type of heating jacket is useful for maintaining the desired temperature within the separatory funnel, for example after the reaction contents have been removed from the main heat source.

The electric heating mantle is used as a heating device for short path distillation. Avoid violations when using

Good chemical stability, electrical insulation performance and mechanical properties.

One-time molding plastics shell, anti-corrosive and fine insulation.

PID intelligent operation control and burnout protection, more accurate.

Can heat standard or nonstandard reaction bulbs from 50ml to 1000ml.

Heating mantle, big heating area, balance in heating and heating up fast.

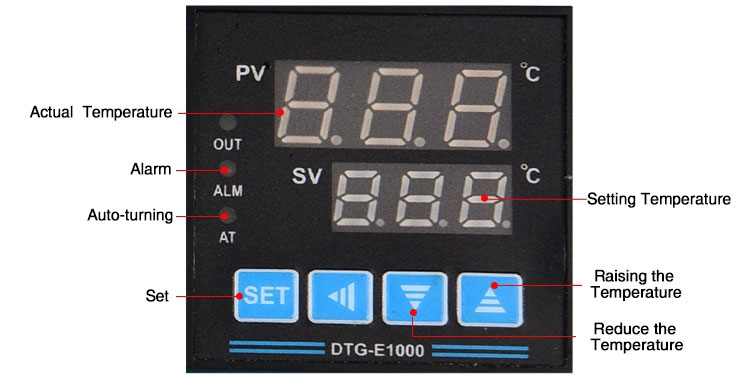

Digital display of temperature, more clear and convenient.

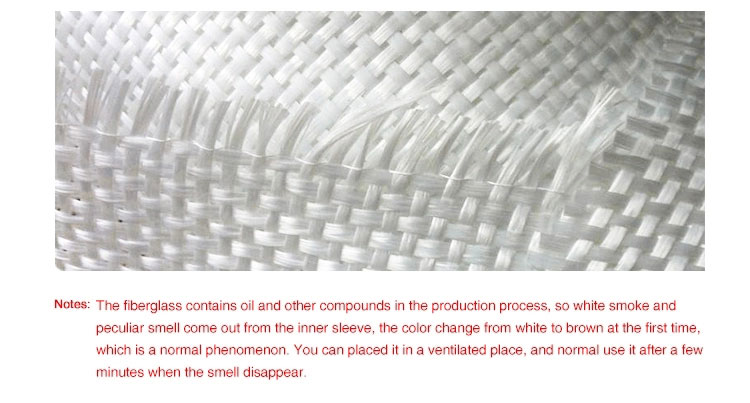

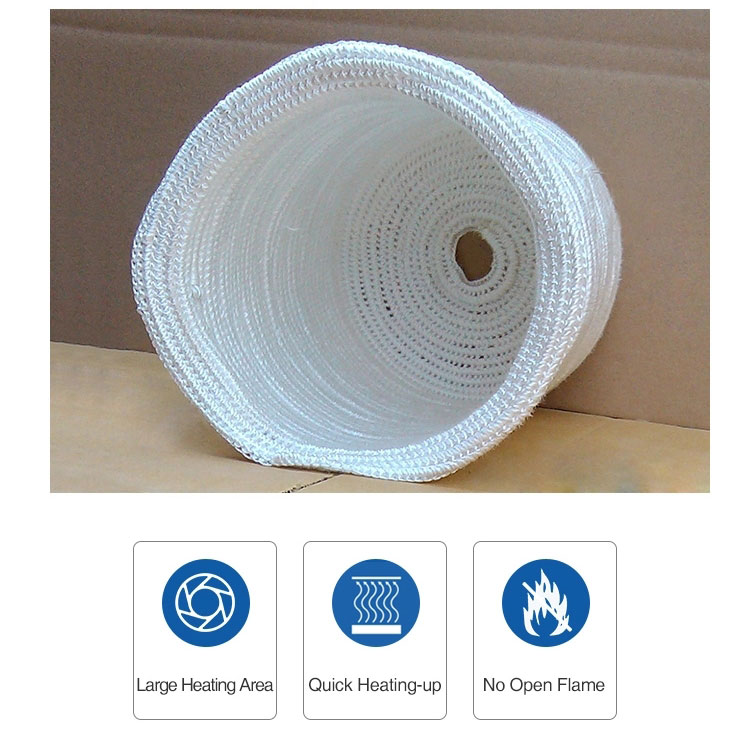

liner adopts high temperature alkali-free fiberglass as insulation materials,which seal the resistance wire in the insulating layer,and then woven into hemispherical heater.

Good chemical stability stability,electrical insulation performance and mechanical properties

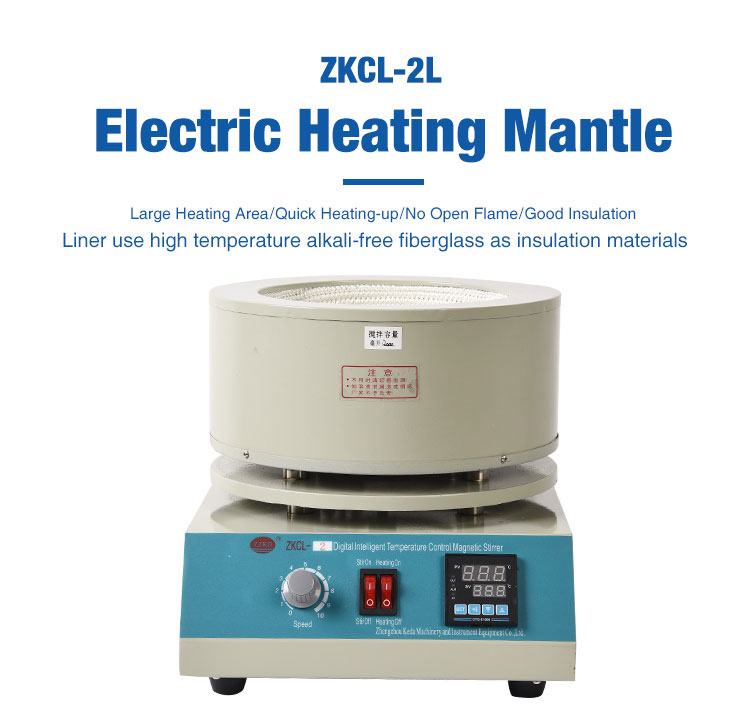

The ZKCL electric heating mantle has 110V, 60Hz and 220V, 50Hz.

The ZNCL electric heating mantle has 220V, 50Hz.

ZNCL electric heating mantle	ZKCL electric heating mantle
