Short-path distillation separates and concentrates cannabinoids and terpenes in cannabis extracts. These concentrated fractions can be more than 99% pure. Short-path distillation produces clean and clarified fractions by separating and concentrating the compounds in the hemp oil into three different categories:
Cannabinoids - Certain cannabinoids can be extracted separately by controlling temperature and pressure.
Terpenoids and Flavonoids - Lighter volatiles with unique boiling points are collected separately and then reintroduced into the final product or used as a substitute.
Contaminants - By-products such as residual solvents and pesticides can be removed.
How short-path distillation works
Solvents are not required to refine crude cannabis oil because short range distillation separates various compounds in cannabis by reaching various boiling points. When heated to a specific temperature, specific compounds can be collected at intervals.
The actual design of the distillation may vary from manufacturer to manufacturer, but in most cases, the distillation package includes:
Heating equipment - required for evaporation
Condenser
Cooling device
Vacuum pump and pressure gauge - for inhaling and capturing air in heating equipment
Receiving vessel - used to collect fractions and test purity.
When the terpene and the cannabinoid each reach their boiling point, they are evaporated, then condensed and collected in a receiving vessel. The black non-volatile product left behind can be discarded and the final product is a clear golden yellow. However, the final product has no taste or aroma because the terpene has been stripped.
 |
 |

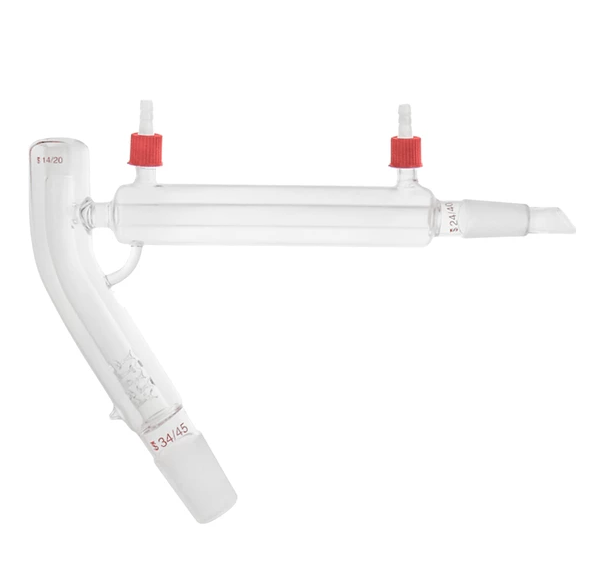

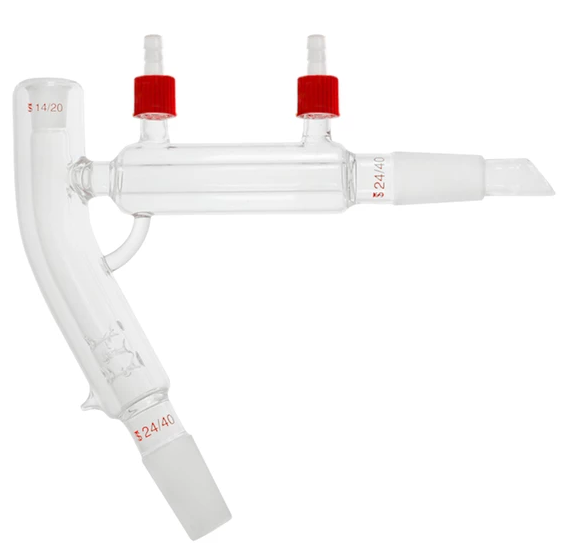

| 2L short path distillation head | 5L short path distillation head |
Care should be taken to avoid damage to the equipment when using a short-path distillation system.
The short-path distillation head is a very fragile broken part and an important part of the short-range distillation system, which is connected between the distillation bottle and the receiving bottle. So pay more attention to its use when using it.
The distillation heads in the 10L, 20L short-path distillation systems are separate and require the two parts to be joined together. Some of this occurs as a cooler for short-path distillation, which cools the vaporized gas in the distillation flask to obtain the desired material.
Our company has separately produced distillation elbows for you to buy! Please leave a message below or email us.
