Vertical Type Circulating Water Vacuum Pump
The SHZ series of vertical circulating water pumps use circulating water as the working fluid. It is a new type of vacuum pump that uses the jet principle to generate negative pressure. It is not only a vacuum pumping unit, but also provides circulating cooling water to the reaction equipment. It has the characteristics of no oil, no pollution, low noise, corrosion resistance and variability. Anti-corrosion movement or stainless steel movement, vertical machinery and many uses.
SHZ-95B vertical circulating water vacuum pump Features:
1. Use five times single or multiple use, equipped with vacuum instrument;
2. Non-polluting, corrosion-resistant, low noise, easy to use, durable, water-saving, energy-saving;
3. The main engine is made of anti-corrosion movement or stainless steel movement;
4. Small size, light weight, easy to move, beautiful appearance;
5. When water is added, the indicator light shows high, medium, and low.
The SHZ series of vertical circulating water pumps are based on a multi-purpose vacuum pump for circulating water. Considering the small laboratory area, the Japanese model pump is used to improve the disposable molded case and reduce the volume. Suitable for research experiments, small tests and small batch production, including evaporation, distillation, crystallization, drying, sublimation, filtration, decompression, degassing, etc. Widely used in universities, scientific research institutions, chemicals, pharmaceuticals, biochemistry, food, pesticides, agricultural engineering, bioengineering and other industries.

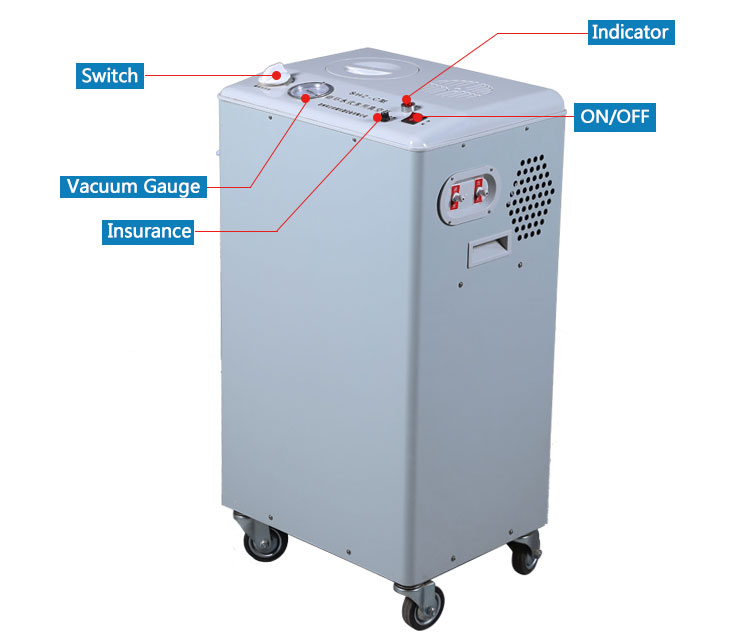

Structure diagram of vertical circulating water vacuum pump
Application:
It provides vacuum conditions for evaporation, distillation, crystallization, drying, distillation, filtration pressure, and vacuum degassing experiments. It is especially suitable for research, pilot and production in universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticide, agricultural engineering, bioengineering and other industries.
Feature:
(1) One machine multi-tube operation, three (five) exhaust fans are fixed, can be used independently or in parallel. Compared with the bench pump, the scavenging amount is larger, which is suitable for the large scavenging vacuum.
(2) Corrosion resistance, no pollution, stable performance, low noise and durability.
(3) The tank body is made of polyvinyl chloride plastic and is non-polluting; the outer casing is made of stainless steel or static spring plastic.
(4) The main machine adopts stainless steel movement and anti-corrosion movement.
(5) Waterline target, the light shows high, medium and low.
(6) 4 rollers make movement easy
(7) Exhaust, tee, check valve, nozzle are made of polytetrafluoroethylene, acid and alkali resistant.
(8) The pump body and impeller are made of anti-corrosion polypropylene.
(9) Specially-designed motors from well-known manufacturers, fluoro rubber mechanical seals, to keep non-corrosive gases into the motor.
(10) There are several pump systems in the pump. Three to five sets of faucets are installed separately or in parallel in this model.
Compared to bench pumps, it has a larger displacement and is especially suitable for large equipment needs.
